1/2" EQUAL ELBOW CONNECTOR

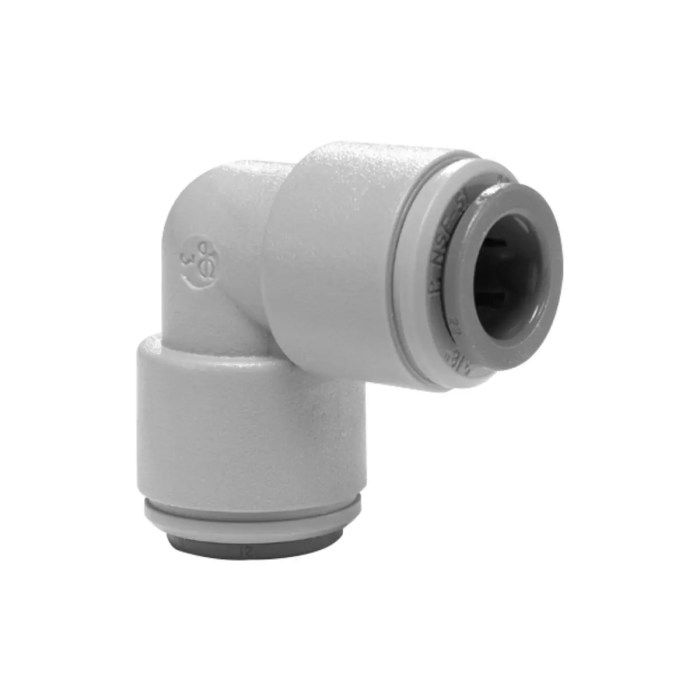

The John Guest PI0316S is a 1/2" equal elbow designed for secure 90° connections in fluid, air, and beverage piping systems. Manufactured from grey acetal copolymer, this fitting is both chemical resistant and NSF-certified, making it ideal for potable water, CO2 lines, and low-pressure pneumatic applications.

Push-fit functionality ensures a quick and tool-free installation, allowing for safe, leak-free directional transitions in tight or complex layouts. Fully compatible with John Guest LLDPE and other tubing with a 1/2" OD.

???? Technical Specifications:

• Part Code: PI0316S

• Fitting Type: Equal Elbow

• Connection Size: 1/2" x 1/2" OD tube

• Material: Acetal (Grey)

• Working Pressure: Up to 230 psi @ 20°C

• Temperature Range: -6°C to +65°C

• Food Grade: Yes – NSF & WRAS approved

• Use Cases:

  • Reverse osmosis and filtration

  • Beverage dispense systems

  • Pneumatic air lines

  • Water-fed pole systems (non-heated)

  • Agriculture and low-pressure chemical dosing

???? Applications Note:

A popular and essential fitting for making compact 90-degree directional changes in any John Guest-compatible plumbing system.

Also frequently used for neat internal layouts in filtration setups or behind access panels in mobile van systems.
