1/4" BULKHEAD CONNECTOR

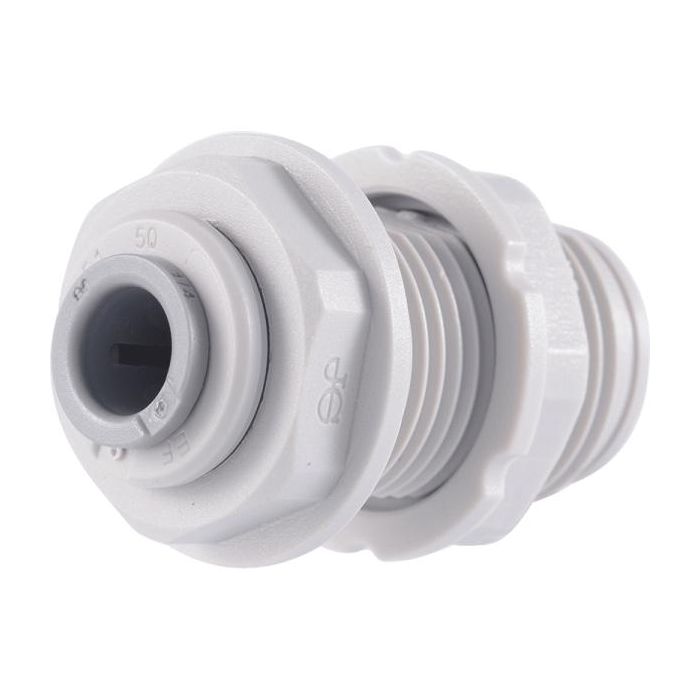

The John Guest PI1208S is a 1/4" push-fit bulkhead union, designed for securely connecting two lengths of tubing through a wall, panel, or enclosure. This fitting is widely used in beverage dispense, vending equipment, compressed air, and water filtration systems, offering a professional and reliable solution where tubing must pass through a fixed surface.

Manufactured from grey acetal copolymer, the PI1208S offers excellent chemical resistance, long service life, and quick, tool-free installation using its push-fit mechanism. The fitting is suitable for potable liquids and inert gases and is NSF and WRAS approved for use in food-grade and drinking water applications.

Ideal for system builds where internal tubing needs to transition through cabinet walls while maintaining a leak-free seal.

???? Technical Info

• Part Code: PI1208S

• Connection: 1/4" OD push-fit (both sides)

• Mounting: Bulkhead-style for panel/wall pass-through

• Material: Acetal (Grey)

• O-ring: Nitrile

• Pressure Rating: Up to 230 psi @ 20°C

• Temperature Range: 0–65°C

• Approvals: NSF51, NSF61, WRAS

• Applications:

  • Beverage systems

  • Vending machines

  • Pneumatics / compressed air

  • Water filtration (non-RO)

  • Inert gas and low-pressure fluid systems

• Mounting Nut Included: Yes

• Country of Origin: UK
