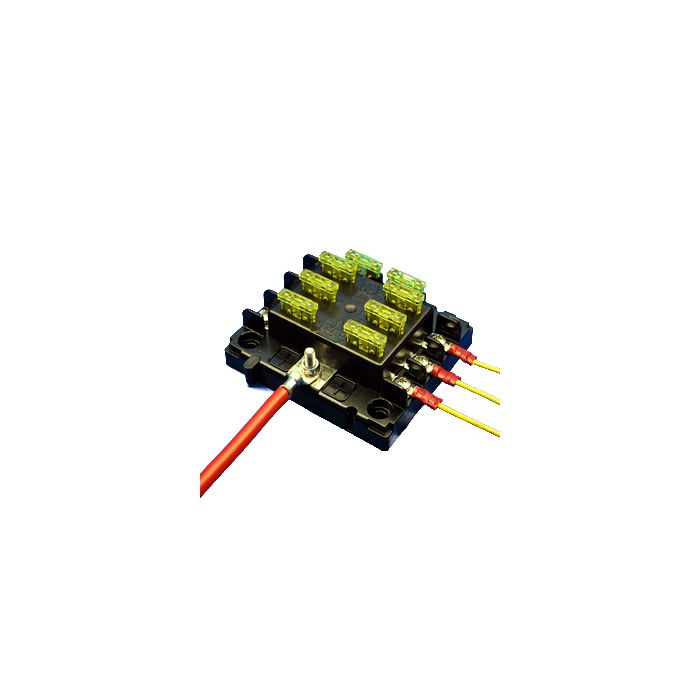

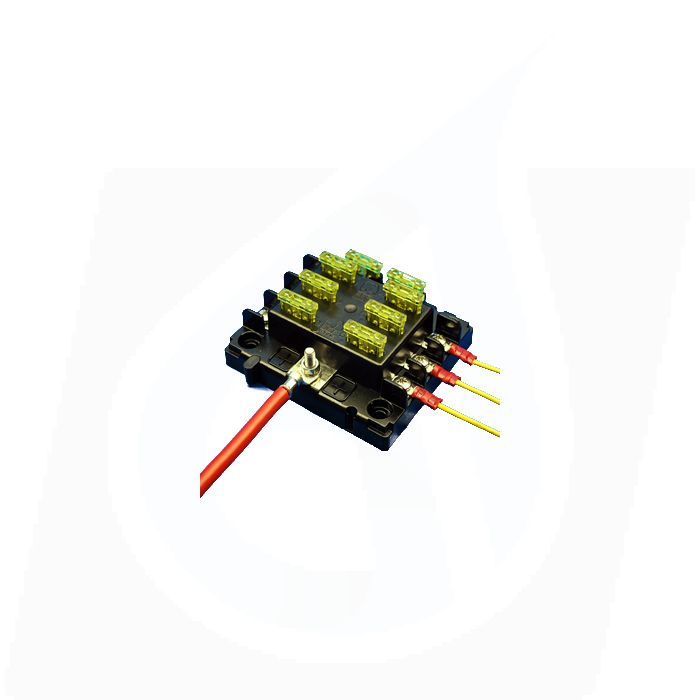

6 Way Terminal Surface Mount Fuse Holder with Cover
Each holder accepts 6 fuses.
Modular - possible to link multiple fuse holders.
The ATC fuse holder includes the patented contour lock system. This allows you to module as many fuse
holders as you like together.
The advantage of this is that it allows you to link the inputs together, or split them apart to allow multiple power groups within one fuse holder eg: switched supply or 24 hour supply.
For the after market the modular system allows you to carry one part number instead of 3 or 4. The 6W-ATC also includes a clip on cover with label positions. The fusebox has two inserts to carry spare fuses.
Specifications:
* Maximum Amperage per circuit-30Amps
* Maximum Amperage per block-100Amps
* Maximum voltage-32VDC
* Base material-Polycarbonate
* Cover Material-Clear polycarbonate
ATC Fuse Specifications:
* Fuses available 1-40Amps
* Maximum Voltage 32 Volts DC
holders as you like together.
The advantage of this is that it allows you to link the inputs together, or split them apart to allow multiple power groups within one fuse holder eg: switched supply or 24 hour supply.
For the after market the modular system allows you to carry one part number instead of 3 or 4. The 6W-ATC also includes a clip on cover with label positions. The fusebox has two inserts to carry spare fuses.
Specifications:
* Maximum Amperage per circuit-30Amps
* Maximum Amperage per block-100Amps
* Maximum voltage-32VDC
* Base material-Polycarbonate
* Cover Material-Clear polycarbonate
ATC Fuse Specifications:
* Fuses available 1-40Amps
* Maximum Voltage 32 Volts DC
