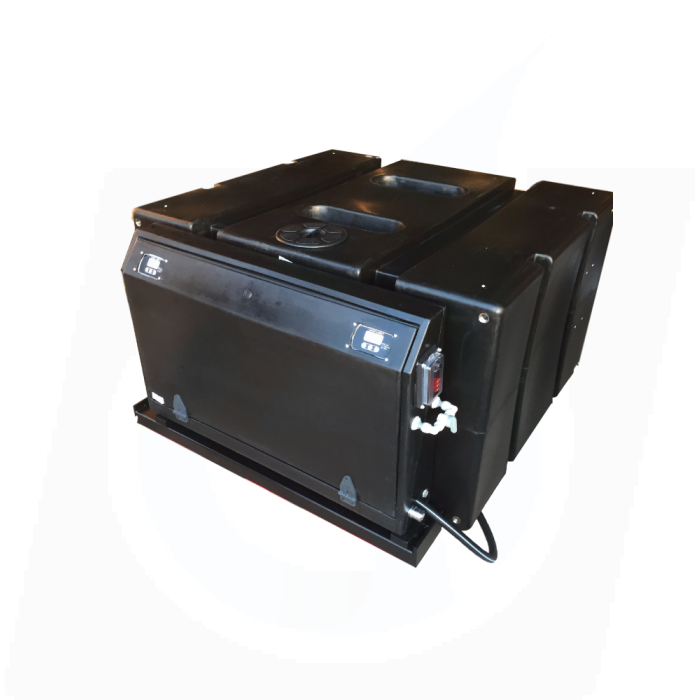

GrippaMAX Water Tank, Frame, & Cabinet Package
- Our crash tested Starter Package includes a MIRA crash Tested water Tank and securing Frame is ideal for car valeters, and pressure washer vans for street cleaners and councils.
- Comes with 80 litre chemical saddle tank as standard as part of the system design and used for chemcial or pure water storage for car detailer drip dry pure water finish systems.
- Various sizes available include single tank options 300, 400, 500, 650, 850 and split tank options 600 and 1000.
Build your own car valeting, pressure washing, or soft wash system with the GrippaMAX tank, frame, and system cabinet package at its core.
Pricing includes:
- GrippaMAX Gardiner Crash Tested System - tested on HyGE sled
- Cube design tank which includes structural baffles along with honey comb baffling - this makes the tank stability very strong unlike the clear white tanks you see out on the market - which were never designed to be in vehicles.
- Crash test certification along with fitters certificate when you take out our nationwide driveway fitting service.
- Comes with 80 litre chemical saddle tank as standard as part of the system design and used for chemcial or pure water storage for car detailer drip dry pure water finish systems.
- All fixings for mounting the system are included.
- Tank comes as standard with 12 x 1/2 bsp inlet/outlet ports, 1 x 6 inch inspection lid, 16 x mounting points for control panels and modules, and an external sight-tube
- Fully crash tested framework stainless steel included with all mounting points and fixing plates.
Tank Size options:
- GM 300 LITRE WATER CRASH TESTED TANK SYSTEM
- Length: 930mm - Width: 970mm - Height: 610mm (dims include framework).
- GM 400 LITRE WATER CRASH TESTED TANK SYSTEM
- Length: 1080mm - Width: 970mm - Height: 610mm (dims include framework).
- GM 500 LITRE WATER CRASH TESTED TANK Length: 1390mm - Width: 970mm - Height: 610mm (dims include framework).
- Length: 1090mm - Width: 1090mm - Height: 710mm (dims include framework).
- GM 600 LITRE WATER CRASH TESTED TWIN TANK SYSTEM
- Length: 1260mm - Width: 970mm - Height: 610mm (dims include framework).
- GM 650 LITRE WATER CRASH TESTED TANK
- Length: 1390mm - Width: 970mm - Height: 610mm (dims include framework).
- GM 850 LITRE WATER CRASH TESTED TANK
- Length: 1390mm - Width: 1240mm - Height: 710mm (dims include framework).
- GM 1000 LITRE WATER CRASH TESTED TANK
- Length: 1800mm - Width: 1090mm - Height: 710mm (dims include framework).
GrippaMAX MIRA Crash Worthiness Test Information - The GrippaMAX Systems were tested at MIRA's high tech test facility in the UK. The test was carried out using the HyGe sled. Click here to find out more about the HYGe Sled test system from MIRA Ltd
What is the difference between a HyGe sled test and a head on crash test?
Both tests demonstrate the force that is generated by water inertia. In a head on crash test the crumple zones of the vehicle will absorb some of the energy created on impact. This means that the full force will not be transferred to the tank unit itself. The HyGe sled test is a 'bare' test and transfers the energy instantly to the tank unit and fixings, thus, giving a fuller understanding of the strength and capability of the tank and its fixings.
Should I be concerned about how I carry water in my vehicle?
We don't believe in scaremongering, but do feel this is an important issue. At the end of the day, there is a key difference between carrying a solid load (i.e bricks or gravel) and water. This is because of the weight and movement of water. Water moves in a way that a solid load does not thus distributing weight to different parts of the vehicle at different times during your journey. The GrippaMAX Systems are designed to contain and control the water making it react more like a solid load. This is due to the high strength frame, plates and T-LOK Bolt System and twin baffles.
If I have my GrippaMAX System installed by your team of engineers will I get a certificate of Installation?
Yes. Our engineers will give you a full report on your vehicle along with a certificate of installation. Of course if you choose a DIY Fit you will not be supplied with an engineers certificate, but you will receive your MIRA Certificate to present to your insurers.
Features & Benefits
- Designed by Gardiner and produced and installed by GrippaTank
- Twin baffle systems (Honeycomb and Moulded) ensure maximum stability during use and in an accident
- Unique T-LOK and Floor-Anchor systems ensure maximum security whilst fitting all vehicles
- All systems can be purchased as a DIY fitment or fitted 'On-Your-Drive' by a Certified Engineer
- Lowest centre of gravity of any crash-tested system on the market - installed height 610mm - Safe, Stable & Secure
- Total Footprint Size - 300 Litre: Length: 930mm - Width: 970mm - Height: 610mm (dims include framework).
