S90 GrippaPRO Compact Static Purification System - Upto 90 Litres Per Hour

Minimum flow and pressure: 200lph / recommended pressure of 80psi but can run as low as 30psi.

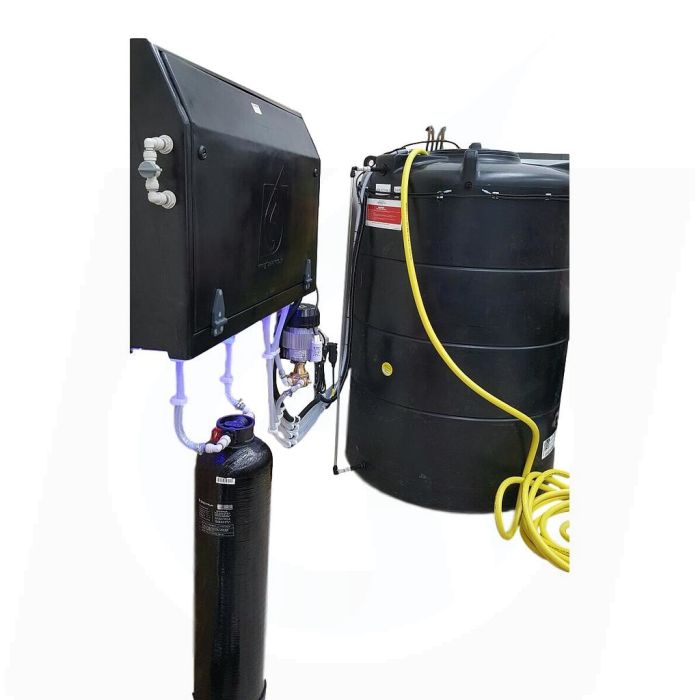

What's included?

6.9 Ltr DI Vessel with Resin
2 x Carbon/Sediment Filter
1 x 12" US Technology RO Membranes capable of making upto 90 litres of pure water an hour
All plumbing and fittings required (plug into the water mains and start making water!)
Patented GrippaTank Cabinet - designed to keep the system protected (only if you select the 'frost protection' option) from being damaged, whilst being easy to maintain
30 Metres of Hose & Connections for Waste & Inlet Water.
Assembled and Tested

What's not included?

Installation - although this is available via the checkout options.
Auto Shut off / TDS Monitoring / Autoflush Controller - although this is available via the checkout options.
Booster Pump - although this is available via the checkout options.
Wall Fixings.
Transfer Pump & Hose
Totaliser System & Tank

*Based on test figures with working pressure of 80psi, temperature of 25c, and a minimum flow rate.

Dimensions

Cabinet Dimensions: 970mm H x 160mm D x 635mm H

Booster Pump Dimensions (if ordered): 330mm x 170mm x 170mm

System Controller Dimensions (if ordered): 270mm H x 170mm W x 100mm H

DI Bottle Dimensions: 500m x 170mm x 170mm

Comparison figures System	Mains – no booster	Boosted System
300	3-5 hrs	1-2 hrs
400	4-6 hrs	2-4 hrs
500	6-8hrs	3-5hrs
650	7-9hrs	4-6hrs
850	8-10hrs	5-7hrs
1000	9-11hrs	6-7hrs

Above is a minimum guide only, based on worst case scenario – factors such as insufficient mains incoming flow, outside temperature, membrane age, and service interval will affect the above suggested guide figures.
