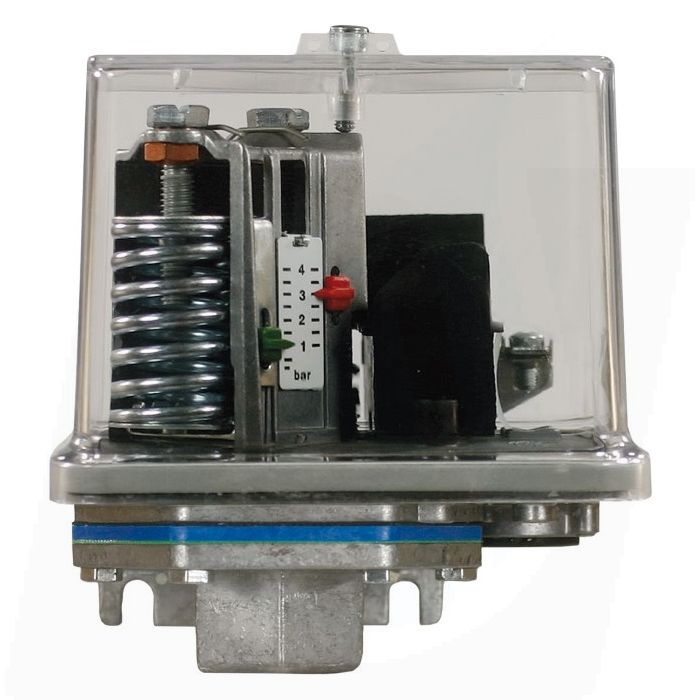

PRESSURE SWITCH FANAL 0.22-4 BAR
Contact 10 A - 380 V (Ac1)
Max 250 Bar
90°C
3/8" F
Height:110mm
Press:0.22-4 Bar
Type:Ff4-4
Upper switchpoint: 0,22 .... 4 bar
Lower switchpoint: 0,07 .... 3,75 bar
Smallest difference lower 0,15 / 0,25 bar (upper / lower end of range)
Max.operating pressure: 24 bar
Max. test pressure: 40 bar
Standard setting: 1 / 3 bar
Connector: G 3/8" Silumin
| Bar | 250 |
|---|---|
| Length | 110mm |
| Inlet | 3/8" Female |
| Material | Plastic |
| Colour | Clear |
| Cleaning Temperature | 90 |
| Electrical Voltage | 380 V |
| M Number | 1010062 |
| M Number | FF4-4 DAH |
| Additional information | Contact 10 A - 380 V (Ac1)Max 250 Bar90°C3/8" FHeight:110mmPress:0.22-4 BarType:Ff4-4 |
