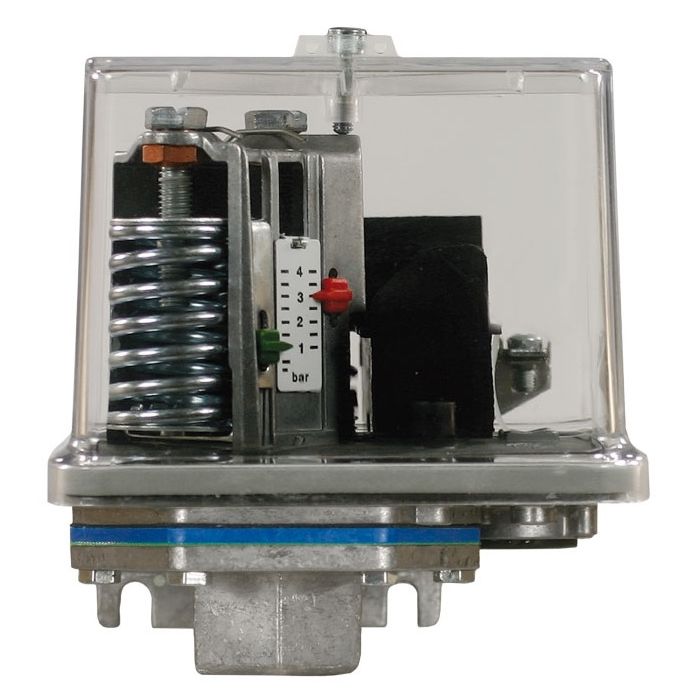

PRESSURE SWITCH FANAL 2-32 BAR
Contact 10 A - 380 V (Ac1)
Max 250 Bar
90°C
3/8" F
Height:110mm
Press:2-32 Bar
Type:Ff4-32
Upper switchpoint: 2 .... 32 bar
Lower switchpoint: 0,8 .... 30 bar
Smallest difference lower: 1,2 / 2 bar (upper / lower end of range)
Max.operating pressure: 52 bar
Max. test pressure: 64 bar
Standard setting: 10 / 20 bar
Connector: G 3/8" Silumin
weigh
| Bar | 250 |
|---|---|
| Length | 110mm |
| Inlet | 3/8" Female |
| Material | Plastic |
| Colour | Clear |
| Cleaning Temperature | 90 |
| Electrical Voltage | 380 V |
| M Number | 1010076 |
| M Number | FF4-32 DAH |
| Additional information | Contact 10 A - 380 V (Ac1) Max 250 Bar 90°C 3/8" F Height:110mm Press:2-32 Bar Type:Ff4-32 |
