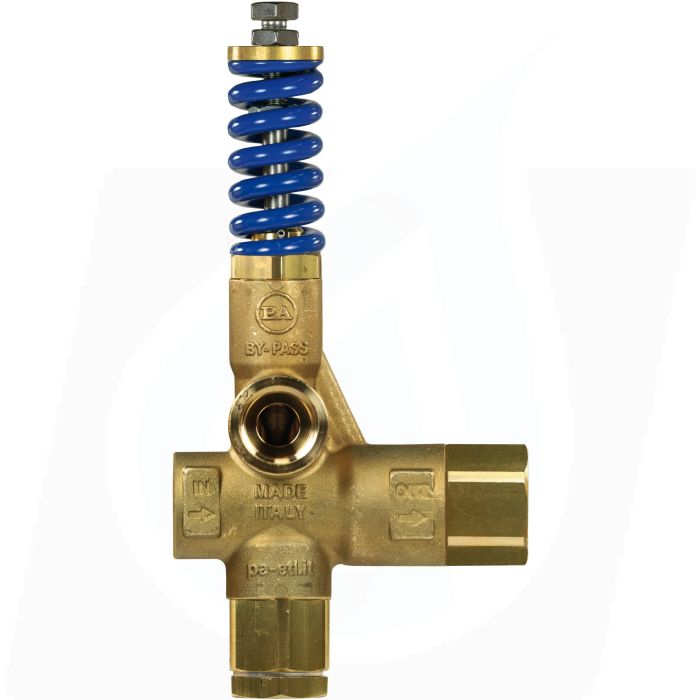

VB85 UNLOADER VALVE 280 BAR

The VB85 is a heavy-duty pressure regulating unloader valve, designed for high-pressure washers operating up to 280 bar. It ensures safety and control by managing pressure build-up in the system when the trigger is released, protecting both the pump and the operator.

Constructed from robust brass with stainless steel internal components, the VB85 offers reliable performance even under continuous use in commercial environments.

Key Features:

• Max Pressure: 280 bar / 4060 psi

• Max Flow: 30 LPM

• Max Temperature: 90°C

• Inlet: 3/8" BSP Female

• Outlet: 3/8" BSP Female

• Bypass: 3/8" BSP Female

• Adjustable pressure regulation via top-mounted knob

• Can be mounted directly on pump or remotely via bracket

Applications:

• Industrial and commercial pressure washers

• Agricultural pressure cleaning setups

• Vehicle wash bays

• Pump protection circuits

Important Note:

Always use in conjunction with a safety relief valve in fixed installations. Ensure regular maintenance and cleaning to prolong service life.
