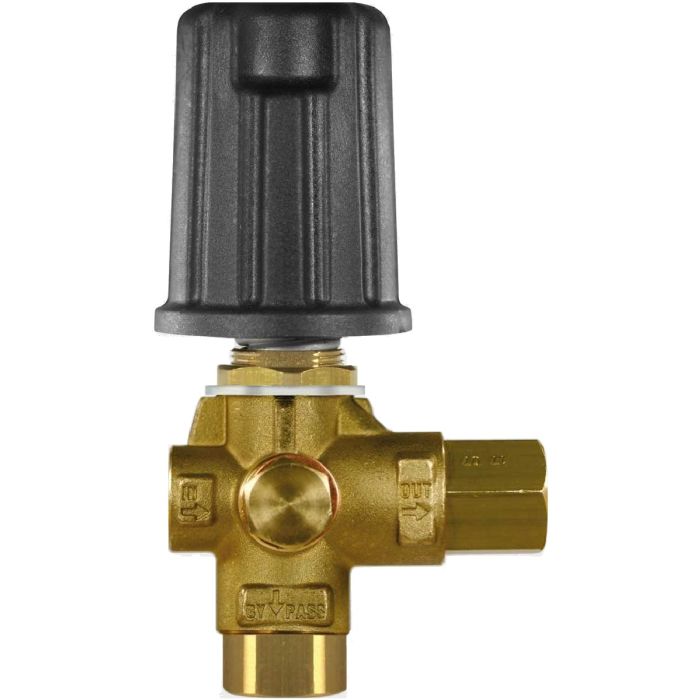

VB9 UNLOADER PANEL MOUNT
Inlet:3/8" F
Outlet:3/8" F
Bypass:3/8" F
Max Press: 220 Bar
Max Flow:30 L/Min
Max Temp:90°C
VB9 UNLOADER PANEL MOUNT
Sturdy steel and brass construction
Resetting of bypass at around 40 bar – 4 MPa which allows periods of non labour before the release for bypass setting.
Hexagonal shaped check valve to avoid jamming.
Version with knob,
| Bar | 220 |
|---|---|
| Inlet | 3/8" Female |
| Material | Brass |
| Outlet | 3/8" Female |
| Colour | Black |
| Cleaning Temperature | 90 |
| Additional information | Inlet:3/8" F Outlet:3/8" F Bypass:3/8" F Max Press: 220 Bar Max Flow:30 L/Min Max Temp:90°C replaces item 5322340 |
