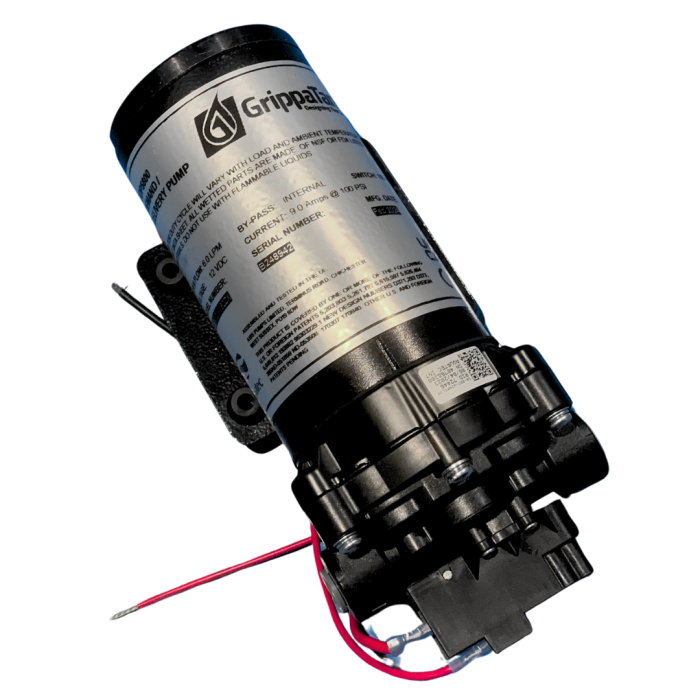

Aquatec WFP Window Cleaning Delivery Pump 100PSI

The Aquatec 100psi WFP Delivery Pump is known for its exceptional reliability and performance.

It’s the chosen pump for all GrippaMAX systems, as we believe the Aquatec pump is the most reliable water-fed pole (WFP) pump on the market.

With its 9-amp maximum current draw, it efficiently delivers water for a range of professional cleaning applications, including window cleaning, solar panel cleaning, and high-reach building cleaning.

This pump comes with factory-fitted John Guest 3/8" female push-fit ports on both the inlet and outlet, ensuring quick-release, leak-free connections and eliminating the common issues of airlocks and water leaks.

Key Features:

• 100PSI Adjustable Pressure Switch

• 9 Amp maximum current draw (with reduced current draw when used with a pump controller)

• 5.2 LPM (Open Flow Rate)

• 3-chamber diaphragm pump with internal bypass

• Factory-fitted John Guest 3/8" push-fit ports for easy, air-tight, leak-free connections

• Max Pressure: 100 psi

• Voltage: 12V DC

• Recommended Use: Window cleaning, solar panel cleaning, high-reach building cleaning, conservatory cleaning, glass roof cleaning

Applications:

The Aquatec WFP Delivery Pump is perfect for a variety of water-fed pole cleaning tasks, including:

• Residential and commercial window cleaning

• Solar panel cleaning

• High-reach building cleaning

• Conservatory and glass roof cleaning

Plumbing Advice:

Our Aquatec pumps are unique on the market due to their factory-fitted John Guest 3/8" female push-fit ports, which offer a superior air-tight seal compared to traditional threaded ports. This helps to prevent airlocks and water leaks. We recommend these ports for hassle-free plumbing and quick installation.

For additional plumbing adapters and elbows, see the related products section:

• 3/8" John Guest Elbows: Select 2 x PI221212s

• To enlarge from 3/8" JG Tubing to 1/2" JG Tubing: Select 2 x PI131216S

• To adapt from JG tubing to 1/2" garden-style hose: Select PI251616s x 2, 2 x OO-MS, 2 x PI131216S, 2 x PI221212S

Technical Info:

• Maximum Current Draw: 9A (ideal factory conditions; real-world current is typically less)

• Flow Rate: 5.2 LPM (Open Flow Rate)

• Pump Type: 3-chamber diaphragm with internal bypass

• Pressure: 100 psi

• Ports: 3/8" John Guest female push-fit

• Max Temperature: 120°C

• Weight: Approx. 1.8kg

• Voltage: 12V DC

Note: The maximum current rating of 9A is measured under ideal conditions (open outlet). In real-world conditions, the current draw is usually much lower. Adding a pump controller reduces this current draw further. We recommend a 15A fuse for safety when connecting the pump to a controller.

When fitting a new pump to a controller, be sure to follow the calibration steps to ensure proper water flow. Incorrect calibration may result in low or no water flow.
