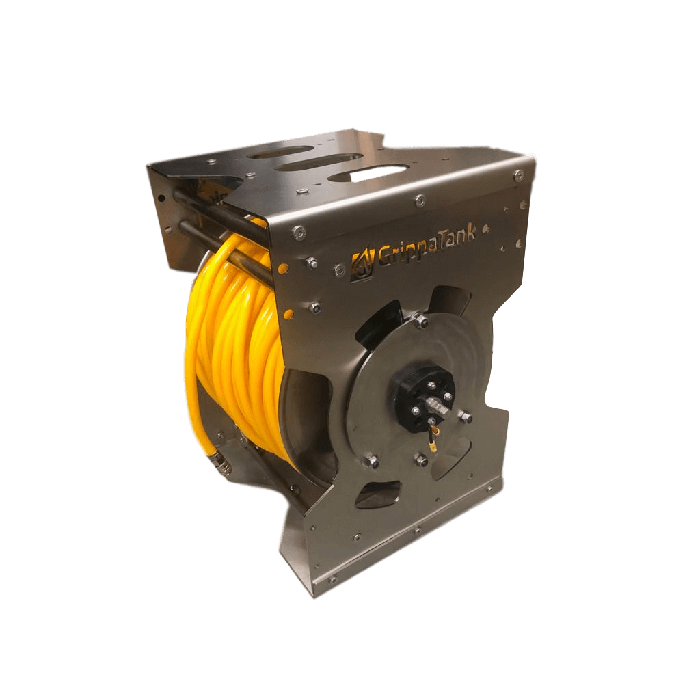

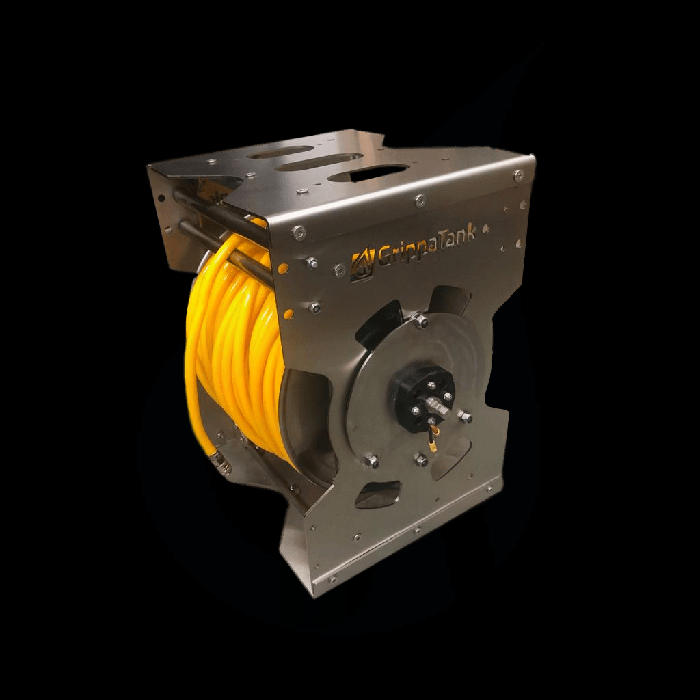

GrippaReel V1 - Compact SS Electric & Manual WFP Low Pressure Steel Water Reel
- V1 COMPACT 300mm DEPTH Model designed to fit into pickup trucks or locations where depth is an issue.
- Accepts 80 metres of 6mm hose,
- Made in the UK with High Quality Construction
- Robust Durable Build
- Quick Release Design
- Stainless Steel Chassis Construction - see our mild steel options in black and blue here
- Customised powder coating service available
- Available as Hand Cranked (Left-handed or Right-handed) or Chain-less Gearbox Driven Electric Hose Reel
- Assisted pull out and Auto Clutch
- Extended 2 Year Warranty
- Stackable as Standard (2 manual, 2 electric, or one of each)
- Remote Control Available on Electric Versions (limited to 50mtrs 'line of sight' operation for safety reasons)
- Minimal maintenance required - a little PTFE spray (see 'Related Products' on the right of this page) on the gears is all that is needed
Packed with features, our range includes:
• Available in powder coated steel (select blue or black) or stainless steel.
• Fixed floor mounted reel which can be easily removed without tools within seconds (*if quick release base is purchased)!
• Stackable as standard - no additional racking required. Using the revolutionary StakaReel technology as standard, the reels simply slot on top of each other, giving you much needed space on demand. Stack 2 manual, 2 electric, or one of each
• Built from a combination of high-quality steel components, it’s not only strong and durable but lightweight and easy to handle
• Available as either hand cranked, or chainless gear box driven electric versions, the GH-VS1 range can be used for low pressure (up to 300psi) with ½” 30 metre hose and 80 metres of 6mm hose.
• The chainless electric motor has been specifically concealed as part of the core product design, making it safer, more effective and efficient - no additional floor space is taken up due to the clever compact gearbox design.
• Electric reels come with the option of a remote control or wired control system (Remote control is limited to 50mtrs 'line of sight operation - this is a safety feature)
• Electric reels include intelligent power assisted pull out, which matches the speed of the operator pulling out the unit.
• The chainless motor is multi-directional - not just rewind.
• Variable Speed Control both on the wired and remote versions for the electric reels.
• Electric reels fitted as standard with Safety shutoff in keeping with the working machinery act.
• Easily Serviceable - all parts can be easily replaced on site
Electic Reels supplied with an Emergency Handle Assembly (in case of power failure)
Electric reels supplied with 5 metres of positive and negative cable along with conduit and fuse holder, and are designed to be VERY low on power consumpation with a maximum draw of 3 - 4 amps ! - just connect the pos and neg feeds to your existing battery.
• Upgradeable - as with all GrippaTank products, our hose reels can be updated (to include Stainless Steel roller guides) or converted to electric at a later date (when returned to GrippaTank)
-
Weights; Stainless Steel: 15.6kg (hand cranked) or 24.6kg (electric)
- Dimensions: Depth = 300mm, Height = 445mm (+15mm QR base), Width 350mm (bare reel) or 450mm (for electric unit with plumbing) or 600mm (with handle and plumbing)
NB:- Note the external dimensions shown are the absolute external dimensions including the handle and plumbing connections. Even with these external dimensions, the reels will .easily sit side by side with over 250mm gap between the end of each of the handles in a new shape Vauxhall Vivaro by way of an example.
NB: "If stacking hose reels on top of each other, we do not recommend using the quick release base for the bottom reel, but rather to bolt the bottom reel onto the vehicle. The top stacking reel can still be quick released, if a quick release base is fitted to the top of the bottom reel."
