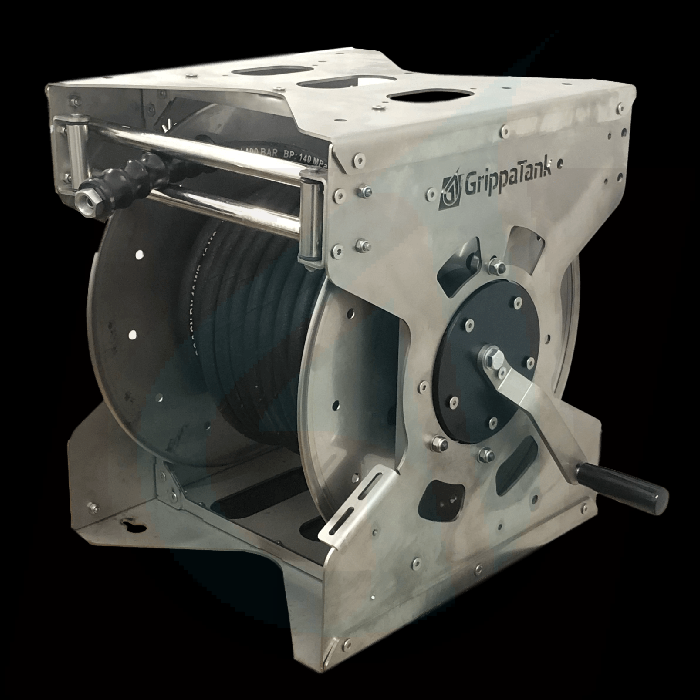

GrippaReel V2 - SS Electric & Manual High Pressure & Softwash Water Reel

"Please note the GrippaReels are proving to be extremely popular currently and we are thus building each reel to order. If you need your reel urgently, please call to confirm lead time"

The newest addition to the GrippaTank product range, the GrippaREEL is 9 years in the making.

Based purely on an extensive customer wish list, along with the wealth of experience we have gained on the thousands of installations carried out thus far, it has been specifically designed to be used in conjunction with our GrippaMAX cleaning system.  The various options of hose reels have been tested by our product testers over the past year, with active ongoing development based on feedback having been received.

This product is intended to make the cleaning operatives life easier and less tiring, as well as making it safer.

Packed with features, our range includes:

•  Available in powder coated steel (select blue or black) or stainless steel.

• Fixed floor mounted reel which can be easily removed without tools within seconds (*if quick release base is purchased)!

• Stackable as standard - no additional racking required. Using the revolutionary StakaReel technology as standard, the reels simply slot on top of each other, giving you much needed space on demand.  Stack 2 manual, 2 electric, or one of each

• Built from a combination of high-quality steel components, it’s not only strong and durable but lightweight and easy to handle

• Available as either hand cranked, or chainless gear box driven electric versions, the GH-VS2 range can be used for high pressure (up to 300 bar) with upto 3/8” 40 metre twin braided wire  pressure washer hose.

•  The chainless electric motor has been specifically concealed as part of the core product design, making it safer, more effective and efficient - no additional floor space is taken up due to the clever compact gearbox design.

• Electric reels come with the option of a remote control or wired control system  (Remote control is limited to 50mtrs 'line of sight operation - this is a safety feature)

• Electric reels include intelligent power assisted pull out, which matches the speed of the operator pulling out the unit.

• The chainless motor is multi-directional - not just rewind.

• Variable Speed Control both on the wired and remote versions for the electric reels.

• Electric reels fitted as standard with Safety shutoff in keeping with the working machinery act.

• Easily Serviceable - all parts can be easily replaced on site

Electic Reels supplied with an Emergency Handle Assembly (in case of power failure)

Our GrippaReels are designed to be low on power consumption with an average power draw of 3 - 4 amps.

• Upgradeable - as with all GrippaTank products, our hose reels can be updated (to include Stainless Steel roller guides) or converted to electric at a later date (when returned to GrippaTank)

• Weights;    Powder Coated Mildsteel: 17kg (hand cranked) or 26kg (electric) ;     Stainless Steel: 15.6kg (hand cranked) or 24.6kg (electric)

• Dimensions:    Depth = 400mm,   Height = 445mm (+15mm QR base),   Width 350mm (bare reel)  or 450mm (for electric unit with plumbing) or 600mm (with handle and plumbing)
• Maximum Capacity:
  >> High Pressure Hose
  >>> 40 metres DN10 3/8" Hose
  >>> 60 metres DN8 5/16" Hose

  >> Low Pressure Hose
  >>> 40 metres 3/4" Hose
  >>> 60 metres 1/2" Hose
  >>> 100 metres 6 and 8mm Hose

NB:- Note the external dimensions shown are the absolute external dimensions including the handle and plumbing connections. Even with these external dimensions, the reels will .easily sit side by side with over 250mm gap between the end of each of the handles in a new shape Vauxhall Vivaro by way of an example.

NB: "If stacking hose reels on top of each other, we do not recommend using the quick release base for the bottom reel, but rather to bolt the bottom reel onto the vehicle. The top stacking reel can still be quick released, if a quick release base is fitted to the top of the bottom reel."

What makes our product so different? see our product Comparison chart below
